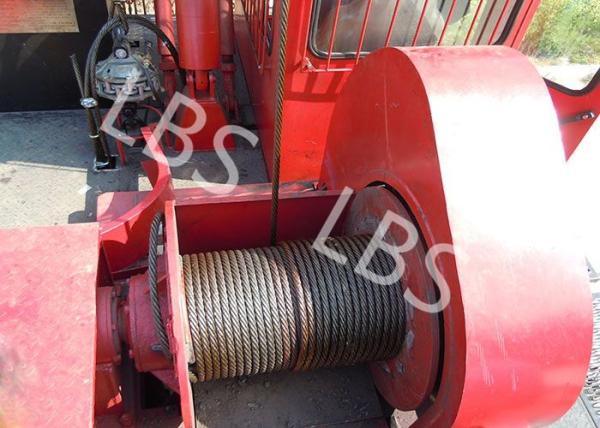

Product name: Rubber-tyred workover rig winches
colour :red or require
Sling type:cable or wire
Power :electric or hydraulic
Rope capacity:1~10000m
Rope diameter:3~90MM
Winch drum type:LBS groove
Features:
1. The rubber-tyred type workover rig is generally equipped with self backed derrick. It has fast running speed and high construction efficiency. It is suitable for the quick removal.
2. Double drum workover rig winch
3. Product adoption LBS grooved drum, LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and
reduces the problem of mechanical equipment shutdown for changing rope.
Parameters: also can be made to meet customer requirement and working condition
| | technical parameters |
| JZ05 | JZ03 | JZ10-2 | JZ08-02 | JZ02-09 | JZ3-2 | JZ50D |
| input powerkW | 150 | 180 | 400 | 450 | 600 | 735 | 1100 |
| master rotor | Maximum Fast line tension(second floor)kN | 80 | 120 | 180 | 210 | 280 | 275 | 340 |
| diameter of the tube body x lengthmm | Φ345×590 | Φ356×912 | Φ450×912 | Φ450×912 | Φ580×1012 | Φ640×1237 | Φ685×1138 |
| brake drum (disc) diameter x length (thickness)mm | Φ810×210 | Φ970×260 | Φ1070×310 | Φ1070×310 | Φ1168×267 | Φ1168×265 | Φ1600×76 |
| For wire rope diameter mm | 22 | 22 | 29 | 29 | 32 | 32 | 35 |
| maximum speed of revolutionrpm | 450 | 450 | 450 | 450 | 450 | 370 | 370 |
| brake drum cooling way | air cooling | air cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | air cooling |
Company profile:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.
Ours services:
1. After-sales service provided: engineers available to service machinery overseas
2. The warranty is one year
3. Top quality with competitive price.
4. Safe and reliable function.
5. Highly efficient, constant operating torque motor.
