Title: LBS Grooved Drum Widely Applied on Cranes & Crane on Oil Rigs and Construction Cranes
Brief intoduction about LBS grooved drum:
When you face the situation where exist mess& chaos of wire rope spooling, you can choose LBS grooved drum that could make the rope sit tidily next to each other. Besides, in multilayer spooling, LBS grooved drum can make each layer to ride cleanly onto the layer beneath.
LBS system design advantages:
1. it has obvious advantages in multilayer spooling, if your winch need multilayer spooling, LBS system is a good choice.
2. it has a special grooving design-- two parallel groove section and two groove section, which guarante multilayer spooling and aviod mess of wire ropes.
3.Lower the rope damage, extend the rope life.
Brief introduction about LBS grooved sleeves:
Compared to LBS grooved drum, the sleeves can be easily installed on large reel if your reel can not be replaced. When you face the situation that if you replace the drum, you have to pay a lot. however, the LBS split -sleeves syatem can not only ensure that wire rope wrapped aroud a hoist drum in multilayers continues to spool totally smoothly, but also avoid your extra spending.
The LBS split-sleeve system composed of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern. Either helical or LBS parallel groove can be carved into the sleeves.As with all LBS drums, the grooving in split sleeves is engineered to match the specific rope construction, diameter and length, and to suit the application.
Application range:
It is easy to find our LBS system on cranes of all types cranes on oil rigs and ships construction cranes, tower cranes and more.
FAQ:
| Q1 | Can i install LBS split sleeves on any type of cable drum? |
| | Subject to compliance with the techincal requirements of a LBS system , any wire rope winch system can be retrofitted with a LBS groove. |
| Q2 | What minimum preload is necessary for the LBS groove? |
| | The preload is the load on the cable at the cable drum. As a rule, it should be at least 2% of the breaking load or 10% of the working load. at the same time, however, the provision must also be made for the safety coefficient and the design of the cable. |
| Q3 | What material can a LBS groove be made of ? |
| | Steel grade Q345B is used as standard. however, special steels such as Q420, Q460, 15CrMo,20GrMo, 42GrMo, etc Material standards: GB, AISI, ASME, ASTM, JIS DIN, NF, BS, EN ... Classification societies certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR ... |
| Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
| Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc |
| Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
| Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures. |
| Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost. |
| Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery. |
Product Tags:
|
|

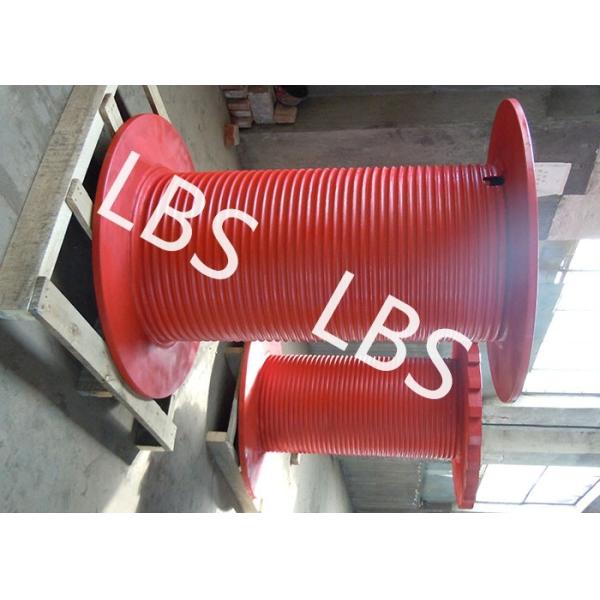

Professioanl Customized LBS Grooved Drum For Construction Cranes Images
|
